MIDAS CIVIL NX | Features

Key Features

MIDAS CIVIL NX offers a user-friendly working environment optimized for Windows. It provides a variety of menu systems, workspaces, and convenient windows such as Tree Menu, Task Pane, and customizable toolbars. In particular, the Works Tree organizes a series of processes from model input to analysis and design in a hierarchical structure. This allows both experienced users and beginners to perform efficient tasks without errors, guiding them through the necessary steps and enabling access to various dialog boxes.

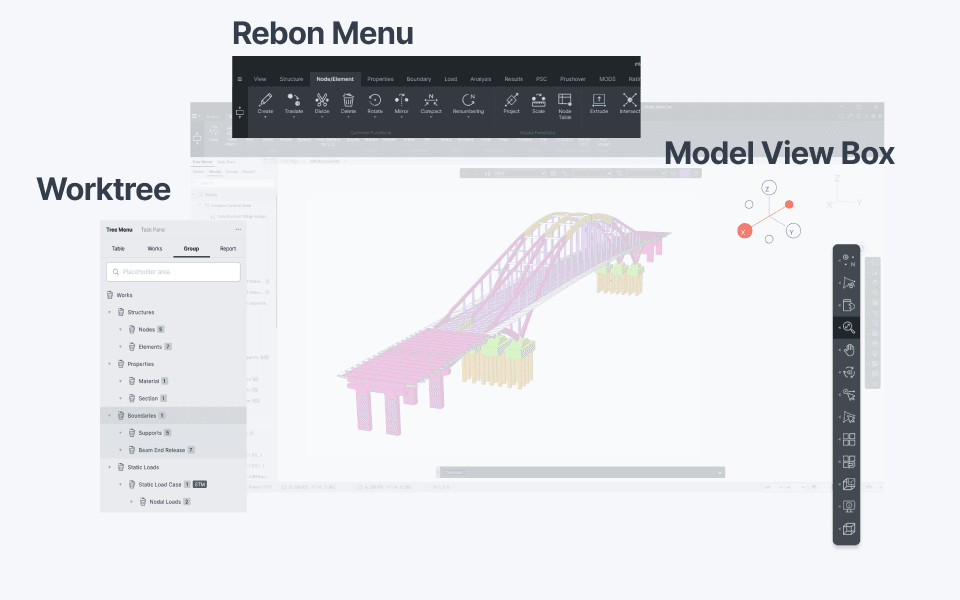

Graphic User Interface (GUI)
All functions related to structural simulation can be intuitively accessed and utilized via the Ribbon Menu. Designers have the ability to customize the interface directly to build their personalized GUI environment. The Message Window allows for progress tracking and error identification. Additionally, the structured Tree Menu allows for the inspection of inputted information in the model and instant access to relevant function dialogs.
Works Tree and Drag & Drop Functionality
MIDAS CIVIL NX's Works Tree organizes a sequence of processes, from model input to analysis and design, in a hierarchical structure. This facilitates effective modeling not only for experts but also for beginners, ensuring error-free operations. The Tree Menu can be displayed simultaneously as Dual, enabling efficiency by allowing users to view both the model input window and Work Tree concurrently. Furthermore, the Drag & Drop feature allows easy alteration of material and section properties.

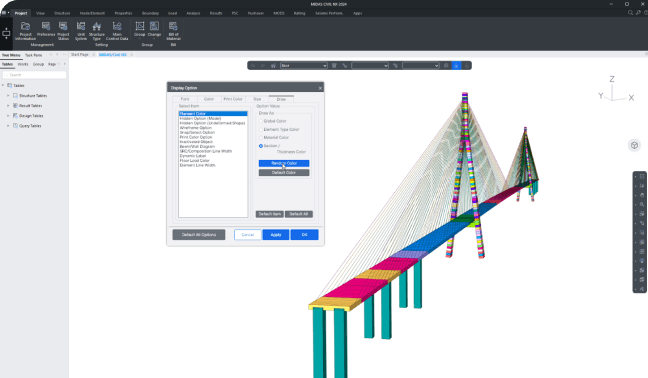

Various Modeling Display Functions
You can specify different color properties for different material and cross-sectional shapes for more intuitive modeling. You can also specify different color properties based on plate element thickness, making modeling more intuitive. Furthermore, you can apply a transparent view function to plate elements or solid elements, allowing you to inspect the interior of the model. This makes it easy to confirm various elements in a model with mixed elements or shapes defined within the model.
